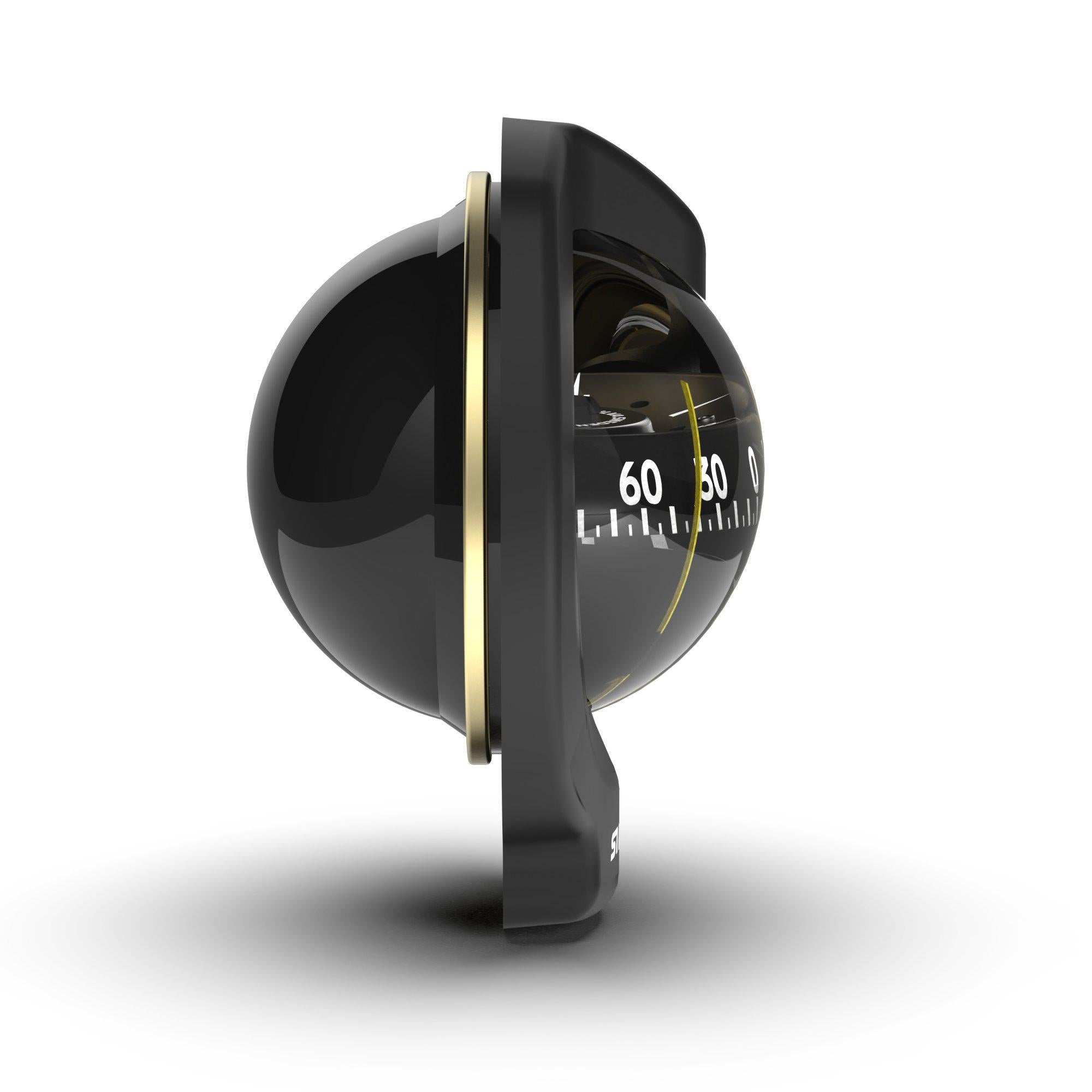

102BH_37198-0011_37198-0013_37198-0015_side copy

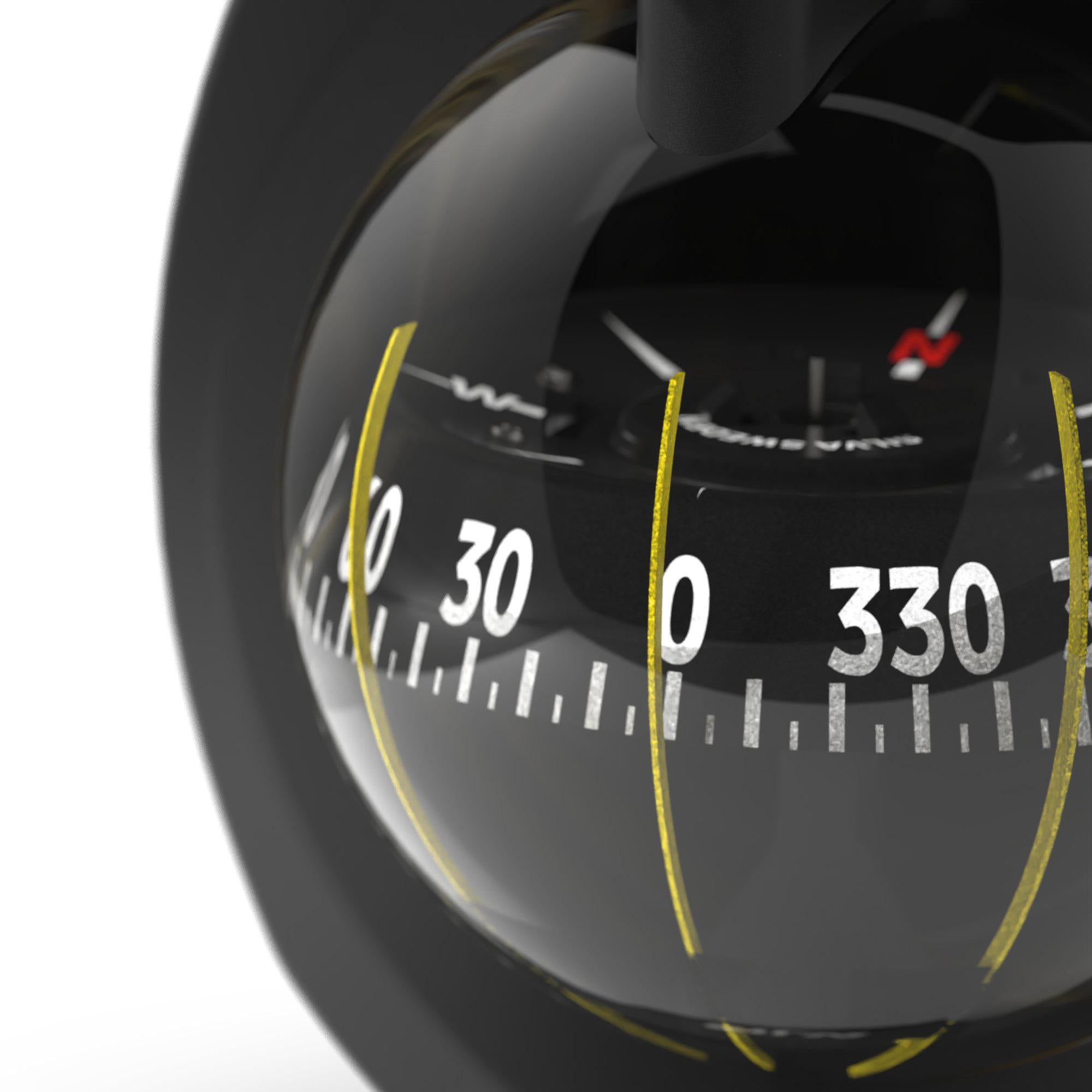

102BH_37198-0011_37198-0013_37198-0015_detail copy

102B/H is a high stability, bulkhead-mounted compass designed for sailboats and yachtsmen that demand absolute accuracy, a steady card in all conditions and heeling angles. This compass is suitable for sailing boats, motor sailing vessels and larger motor yachts.

The compass permits up to 45° heeling and unlimited tilting fore and aft. 102B/H has a 100 mm capsule, gimballed cradle and direct reading scale on the vertical edge.

With the front heeling scale you can easily keep track of the heeling angle. The compass also features built-in red illumination that makes night navigation easier. The gimballed lubber lines stay vertical even if the boat is heeling (max 45°). The two extra lubber lines at 45° offset permit reading from the rail or an off steering position mounting.

The compass is made from all UV resistant materials and the capsule filled with UV resistant liquid. The nontransparent capsule eliminates burn effect.

The optional compensator is easy to fit in a holder under the detachable front. The front also covers the mounting screws. Template matches Contest 101 and 100. White protection cover included.

SILVA QUALITY
The Silva quality ensures durability and excellent readability; the capsule bowl is made from clear and scratch resistant acrylic. The combination of a sapphire jewel bearing and a hardened steel pivot minimizes friction, which in turn gives rapid and accurate movements. Silva marine compasses have a no-spin compass card is designed for perfect dampening and exact reading. You can trust that even when your boat is exposed to rough seas the gimballed suspension system makes sure the functionality is never disturbed hence you will always be able to read the compass accurately.

heeling scale
heeling scale
illumination
illumination
night use
night use
  • Built-in red illumination – enables night navigation
  • 3 Lubber lines – enables reading from different positions
  • Heeling scale – enables optimizing of heeling and speed
  • Protective cover – protects and prolongs the life of your compass
  • Suitable for most boat types
SKU 37198-0011
Accuracy -
Included accessories Compass unit, Illumination, mounting kit, protection cover
Ip classification Waterproof
Measuring scales -
Type of compass Marine compass
User level All
Warranty 5 years

102B/H
